Selective Radiation Meter. Selective measurement of high frequency electro- magnetic fields. Complete, easy to use test system, consisting of a base unit and measuring antennas, for non-directional detection of fields and their sources in the frequency range from 9 kHz to 6 GHz. Oct 28, 2014 Narda SRM-3006 is a complete measuring system: The SRM-3006 basic unit detects and takes account of antenna and calibration data automatically, eliminating a common source of errors. View and Download NARDA SRM-3006 manual online. SELECTIVE RADIATION METER FOR ELECTROMAGNETIC FIELDS UP TO 6 GHz. SRM-3006 Measuring Instruments pdf manual download. Also supplied is the full SRM-TS software package, a 1.5 meter cable to separate the antenna from the meter, and the charger, the operating manual, and other accessories inside a protective carrying case. The SRM-3006 has the ability to perform single or multiple measurements that can be averaged or stored in the meter for download to a computer.
MEASUREMENT FUNCTIONS
Detection of Narda measurement antennas
Automatic consideration of antenna parameters after antenna is plugged in: antenna type,
serial number, calibration date and antenna factors (see below)
Automatic limitation of the frequency range according to the frequency range of the
connected antenna
Antenna factors
Used for display in field strength units
Saved in all Narda antennas during calibration
Antenna factor lists for antennas from other manufacturers can be saved
(these lists defined using the PC configuration software SRM Tools or SRM TS)
Detection of Narda Cables
Automatic consideration of cable parameters after cable is plugged in: Cable type, serial
number, calibration date and loss factors (see below)
Automatic limitation of the frequency range according to the frequency range of the
connected cable
Cable loss factors
Used for compensation of the power level display
Saved in all Narda cables during calibration
Cable loss lists for cables from other manufacturers can be saved (these lists defined using
the PC configuration software “SRM tools” included in delivery)
With
Antenna
% of the standard, V/m, A/m, W/m², mW/cm², dBV/m, dBmV/m, dBA/m,
dBµV/m,
Units
Without
Antenna
dBm, dBV, dBmV, dBµV
Isotropic Measurements
Automatic switching of the antenna axes when using Narda’s three axis measurement
antenna followed by computation of the isotropic result
Sequential measurements using single-axis antennas with subsequent computation of the
isotropic result are supported.
Both results are directly displayed as a spectrum curve or as numerical values
Weighted Display
In % of the standard for the following human safety standards:
ICNIRP, IEEE, FCC, BGV B11, BImSchV, Safety Code 6
Updating for new human safety standards can be made using the PC configuration software
SRM Tools included in delivery or SRM TS)
Correlation of results with telecom service
For learning the basic operations (Copy, Scan, etc), how to replace consumables and troubleshooting tips. Brother MFC-J435W Manuals Manuals and User Guides for Brother MFC-J435W. We have 17 Brother MFC-J435W manuals available for free PDF download: Service Manual, Software User's Manual, Guia Basica Del Usario, Basic User's Manual, User Manual, Network User's Manual, Manual, Advanced User's Manual, Quick Setup Manual, Safety Manual, Product Safety. Brother printer mfc-j435w manual. MFC-J435W; Manuals; MFC-J435W. (Version) File (Size) Basic User's Guide. For learning the basic operations (Copy, Scan, etc), how to replace consumables and troubleshooting tips. For specific information about using the Brother Universal Printer Driver. (B) Download (0.33MB) Appendix: Title Description Release Date (Version) File.
Definition and editing of service tables with the PC configuration software SRM Tools or
SRM TS, i.e. lists of frequency bands (upper and lower limit frequency, name for defined
frequency band)
Storage of service tables in the basic unit
Use of the service tables for automatic correlation of measurement results with defined
services based on frequency
(marker functions, peak table evaluation function, Safety Evaluation mode)
Setups
Complete device configurations can be saved in the basic unit; up- and downloadable using
SRM Tools or SRM TS software.
Measurement Routines
Narda Srm 3006 Download Manual Instructions
Programmable sequences of setups
Memory modes
Result stored as:
Spectrum in Spectrum Analysis mode(SPECTRUM),
Table in Safety Evaluation mode (SAFETY),
Values for Level Recorder (LEVEL) and Scope (SCOPE)
Memory
Memory capacity
128 MB
Hold
“Freezes” the display; the measurement continues in the background.
NSTS 1109- ME-E0272C-0.00
7 / 16
Subject to change without notice

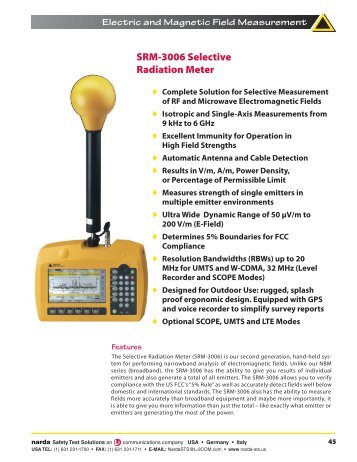

Selective Radiation Meter
SRM-3006
Selective measurement of
high frequency electro-
magnetic fields
Complete, easy to use test system, consisting of a base unit and
measuring antennas, for non-directional detection of fields and their
sources in the frequency range from 9 kHz to 6 GHz
Measurements conforming to ICNIRP and
regional standards with results displayed
directly in terms of the permitted limit value
Fast, reliable results using predefined
measurement routines, setups, and
automatic settings
PC software for customizing tables and
measurement routines, and subsequent
evaluation and handling of large quantities of
measurement data
Suitable for outdoor use: Radiation protected,
robust, splash-proof, ergonomically designed; uses
exchangeable rechargeable batteries; equipped
with integrated GPS and voice recorder
Narda Srm 3006 Download Manual Online
Signals analyzed using application oriented
operating modes and special evaluation
functions
Narda Srm 3006 Download Manual Pdf
Direct numerical, graphical or tabular display
of results; large resolution bandwidth avoids
conversions
Editable tables for automatic correlation of
results with telecommunications services (e.g.
broadcasting, GSM, WiMAX)
NSTS 1109- ME-E0272C-0.00
1 / 16
